2N3499L - NPN Transistor

2N3499L Description

Data Sheet No.2N3499L Type 2N3499L Geometry 5620 Polarity NPN Qual Level: JAN - JANTXV .

2N3499L Applications

* Housed in TO-5 case. Also available in chip form using the 5620 chip geometry. The Min and Max limits shown are per MIL-PRF-19500/366 which Semicoa meets in all cases. Generic Part Number: 2N3499 REF: MIL-PRF-19500/366
* TO-5 Maximum Ratings TC = 25 C unless otherwi

📥 Download Datasheet

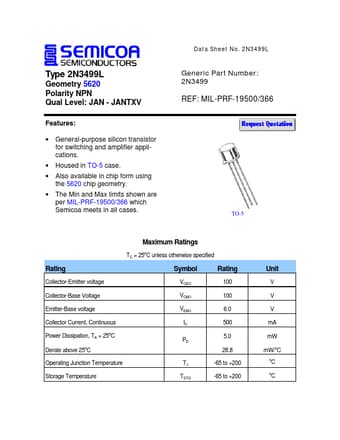

Preview of 2N3499L PDF
datasheet Preview Page 2
