SB1530, SB1520, (SB1520 - SB15100) Schottky barrier rectifier diodes

SB 1520 SB 15100 Type Repetitive peak reverse voltage Surge peak reverse voltage Max.reverse recovery time Max.forward voltage Max.forward voltage.

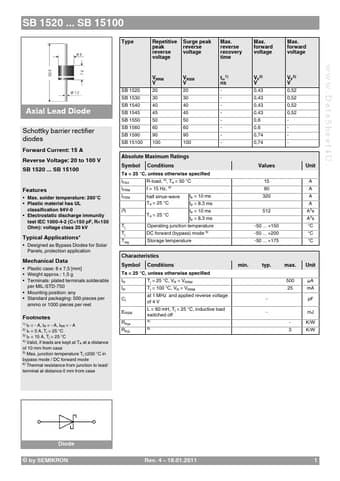

datasheet Preview Page 1 from Datasheet4u.com

SB1520_SemikronInternational.pdf

SB1530 Datasheet Preview — This datasheet PDF includes multiple part numbers: SB1530, SB1520. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SB1530, SB1520

Manufacturer:

Semikron International

File Size:

194.31 KB

Description:

(SB1520 - SB15100) Schottky barrier rectifier diodes

Note:

This datasheet PDF includes multiple part numbers: SB1530, SB1520.
Please refer to the document for exact specifications by model.

Features

* Max. solder temperature: 260°C
* Plastic material has UL classification 94V-0
* Electrostatic discharge immunity test IEC 1000-4-2 (C=150 pF, R=150 Ohm): voltage class 20 kV SB 1540 SB 1545 SB 1550 SB 1560 SB 1590 SB 15100 Absolute Maximum Ratings Symbol IFAV IFRM IFSM i2

Applications

* br>
* Designed as Bypass Diodes for Solar Panels, protection application Mechanical Data
* Plastic case: 8 x 7,5 [mm]
* Weight approx. : 1,5 g
* Terminals: plated terminals solderable per MIL-STD-750
* Mounting position: any
* Standard packaging: 500
