SEMIX71GD12E4S IGBT

Semikron International

Description

SEMiX71GD12E4s SEMiX® 13 Trench IGBT Modules SEMiX71GD12E4s .

📥 Download Datasheet

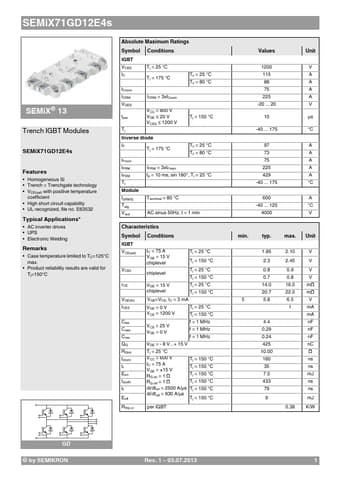

SEMIX71GD12E4S Datasheet Preview — Preview of SEMIX71GD12E4S PDF

Datasheet Specifications

Part number: SEMIX71GD12E4S
Manufacturer: Semikron International
File Size: 522.63 KB
Datasheet: SEMIX71GD12E4S-SemikronInternational.pdf
Description: IGBT

Features

* Homogeneous Si
* Trench = Trenchgate technology
* VCE(sat) with positive temperature coefficient
* High short circuit capability

Applications

* br>
* AC inverter drives
* UPS
* Electronic Welding Remarks
* Case temperature limited to TC=125°C max.
* Product reliability results are valid for Tj=150°C Absolute Maximum Ratings Symbol Conditions IGBT VCES IC Tj = 25 °C Tj = 175 °C Tc = 25 °C Tc = 8
