PE7340G - P-Channel Enhancement Mode Power MOSFET

Semione

📥 Download Datasheet

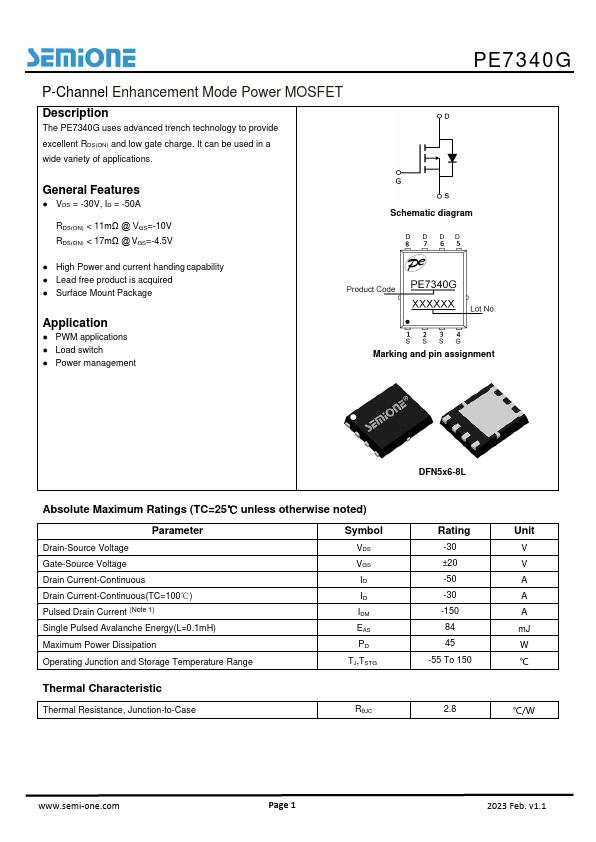

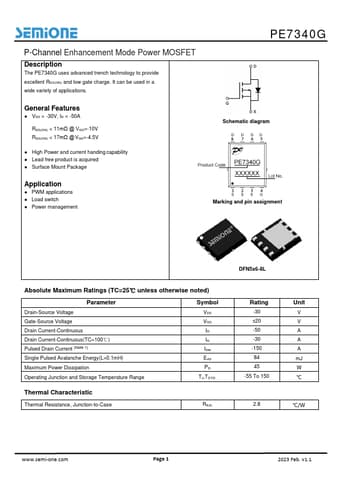

PE7340G Datasheet Preview — Preview of PE7340G PDF

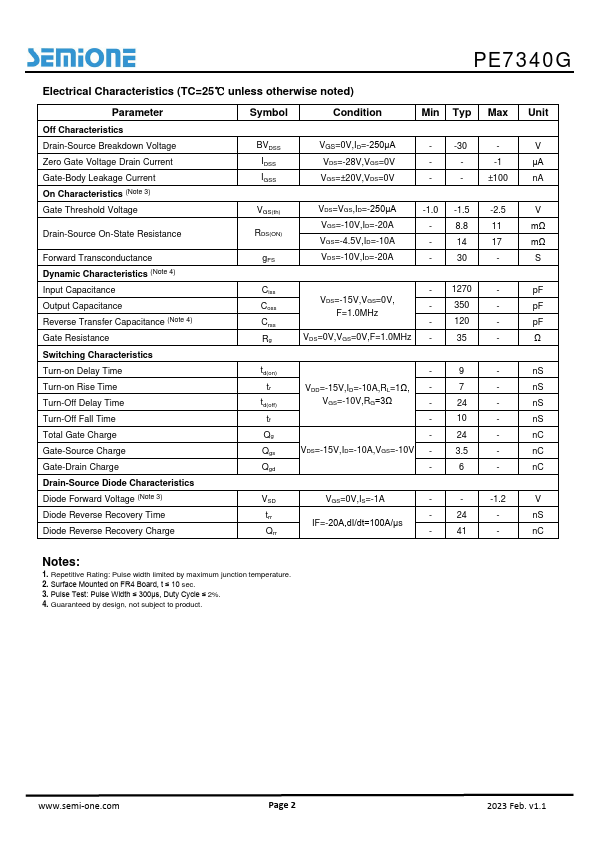

datasheet Preview Page 2

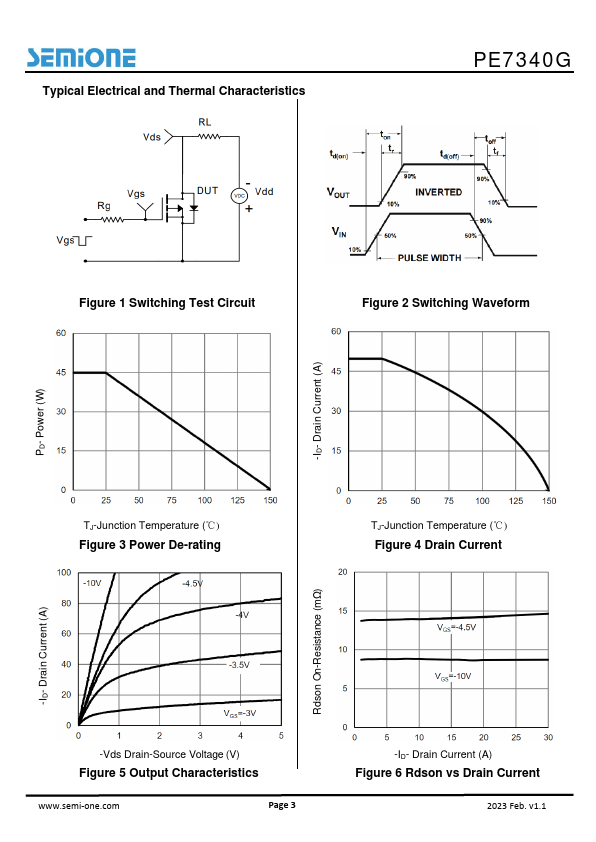

datasheet Preview Page 3

Datasheet Details

Part number	PE7340G
Manufacturer	Semione
File Size	1.20 MB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	PE7340G-Semione.pdf

PE7340G Product details

Description

The PE7340G uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

Features

VDS = -30V, ID = -50A RDS(ON) < 11mΩ @ VGS=-10V RDS(ON) < 17mΩ @ VGS=-4.5V.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package.
