PE7396-9 Datasheet, Attenuator, Pasternack Enterprises

PDF File Details

Manufacture Logo for Pasternack Enterprises
Pasternack Enterprises manufacturer logo

Part number:

PE7396-9

Manufacturer:

Pasternack Enterprises

File Size:

196.31 KB

Download:

📄 Datasheet

Description:

9db fixed attenuator. Minimum Typical Maximum 3 Units GHz Frequency Range DC Impedance 75 Ohms Attenuation Value 9 dB Input Power

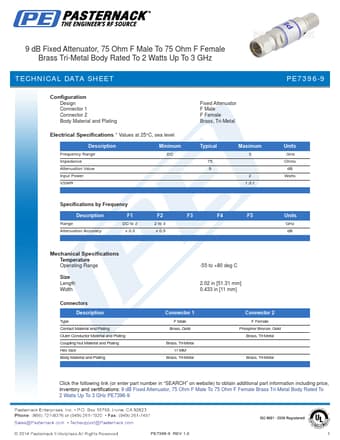

Datasheet Preview: PE7396-9 📥 Download PDF (196.31 KB)
Page 2 of PE7396-9

📁 Related Datasheet

Stock and price

Distributor
Pasternack Enterprises
Key Specifications, Design: Fixed, Maximum Frequency: 3 GHz, Impedance: 75 Ohm, Power Maximum: 2 Watt, VSWR Maximum: 1.3:1, Attenuation: 9 dB, Connector Series 1: F, Connector Gender 1: Male, Connector Series 2: F, Connector Gender 2: Female, Body Material: Brass, Body Plating: Tri-Metal. 9 dB Fixed Attenuator, 75 Ohm F Male to 75 Ohm F Female Brass Tri-Metal Body Rated to 2 Watts Up to 3 GHz. PE7396-9 is a fixed 9 dB attenuator from Pasternack. This 9dB attenuator is an in-line, resistive PI attenuator pad design. Our coaxial 75 Ohm attenuator is manufactured to precise RF / microwave industry specifications. This type F attenuator has a male gender on side 1 and a type F female connector on side 2. The Pasternack PE7396-9 9 dB attenuator is rated for up to 3 GHz. Our microwave attenuator is rated to 2 Watts at the stated attenuation value. Our fixed RF attenuator PE7396-9 is shipped same-day as purchased from Pasternack's production facility certified to ISO 9001:2015. This 9dB attenuator is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
Pasternack Enterprises US
PE7396-9
5 In Stock
Qty : 1 units
Unit Price : $117.99
