PE7309DS, PE7309DS-ChipSourceTek, P-Channel Enhancement Mode Power MOSFET

PE7309DS P-Channel Enhancement Mode Power MOSFET .
The PE7309DS uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

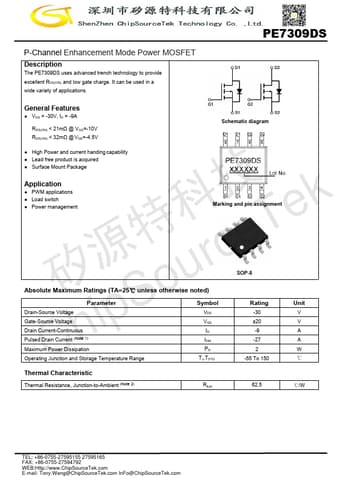

datasheet Preview Page 1 from Datasheet4u.com

PE7309DS-ChipSourceTek_removed.pdf

PE7309DS Datasheet Preview — This datasheet PDF includes multiple part numbers: PE7309DS, PE7309DS-ChipSourceTek. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PE7309DS, PE7309DS-ChipSourceTek

Manufacturer:

ChipSourceTek

File Size:

0.96 MB

Description:

P-Channel Enhancement Mode Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: PE7309DS, PE7309DS-ChipSourceTek.
Please refer to the document for exact specifications by model.

Features

* VDS = -30V, ID = -9A RDS(ON) < 21mΩ @ VGS=-10V RDS(ON) < 32mΩ @ VGS=-4.5V Schematic diagram
* High Power and current handing capability
* Lead free product is acquired
