PE7209M - P-Channel Enhancement Mode Power MOSFET

PE7209M Description

P-Channel Enhancement Mode Power MOSFET .
The PE7209M uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

PE7209M Features

* VDS = -20V, ID = -25A RDS(ON) < 16mΩ @ VGS=-4.5V RDS(ON) < 22mΩ @ VGS=-2.5V Schematic diagram
* High Power and current handing capability
* Lead free product is acquired

📥 Download Datasheet

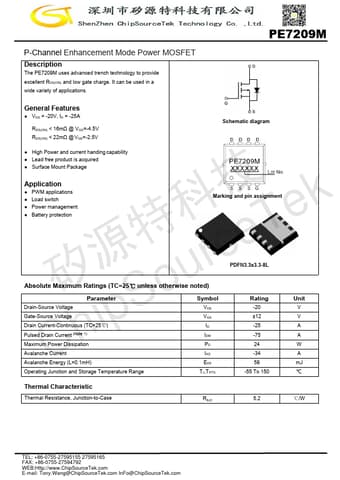

Preview of PE7209M PDF
