PE7290G, PE7290G-ChipSourceTek - P-Channel Enhancement Mode Power MOSFET

PE7290G Description

P-Channel Enhancement Mode Power MOSFET .
The PE7290G uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

PE7290G Features

* VDS = -20V, ID = -90A RDS(ON) < 2.3mΩ @ VGS=-10V RDS(ON) < 2.5mΩ @ VGS=-4.5V RDS(ON) < 3.7mΩ @ VGS=-2.5V Schematic diagram
* Fully characterized avalanche voltage and current
* Good stability and uniformity with high EAS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PE7290G, PE7290G-ChipSourceTek. Please refer to the document for exact specifications by model.

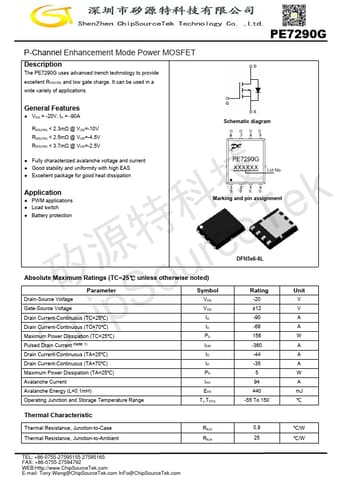

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PE7290G, PE7290G-ChipSourceTek
Manufacturer
ChipSourceTek
File Size
0.98 MB
Datasheet
PE7290G-ChipSourceTek_removed.pdf
Description
P-Channel Enhancement Mode Power MOSFET
Note
This datasheet PDF includes multiple part numbers: PE7290G, PE7290G-ChipSourceTek.
Please refer to the document for exact specifications by model.
