PE7208F - P-Channel Enhancement Mode Power MOSFET

PE7208F Description

P-Channel Enhancement Mode Power MOSFET .
The PE7208F uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

PE7208F Features

* VDS = -20V, ID = -8A RDS(ON) < 19mΩ @ VGS=-4.5V RDS(ON) < 28mΩ @ VGS=-2.5V Schematic diagram
* High Power and current handing capability
* Lead free product is acquired

📥 Download Datasheet

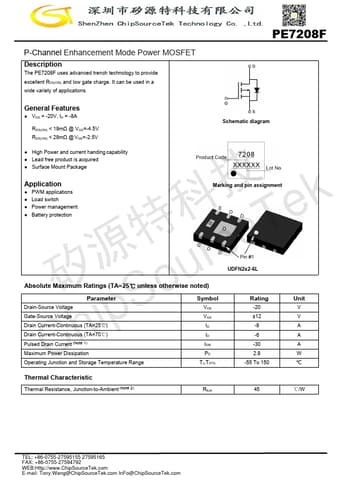

Preview of PE7208F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PE7208F
Manufacturer
ChipSourceTek
File Size
1.02 MB
Datasheet
PE7208F-ChipSourceTek.pdf
Description
P-Channel Enhancement Mode Power MOSFET
