PE8425DM N-Channel Enhancement Mode Power MOSFET

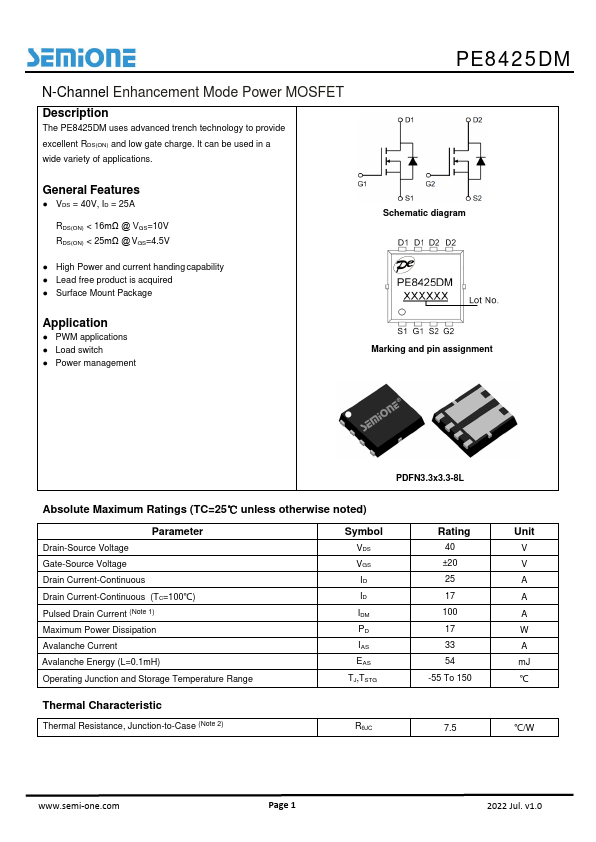

📥 Download Datasheet Datasheet Preview Page 1

Description

N-Channel Enhancement Mode Power MOSFET .
The PE8425DM uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

📥 Download Datasheet

Preview of PE8425DM PDF

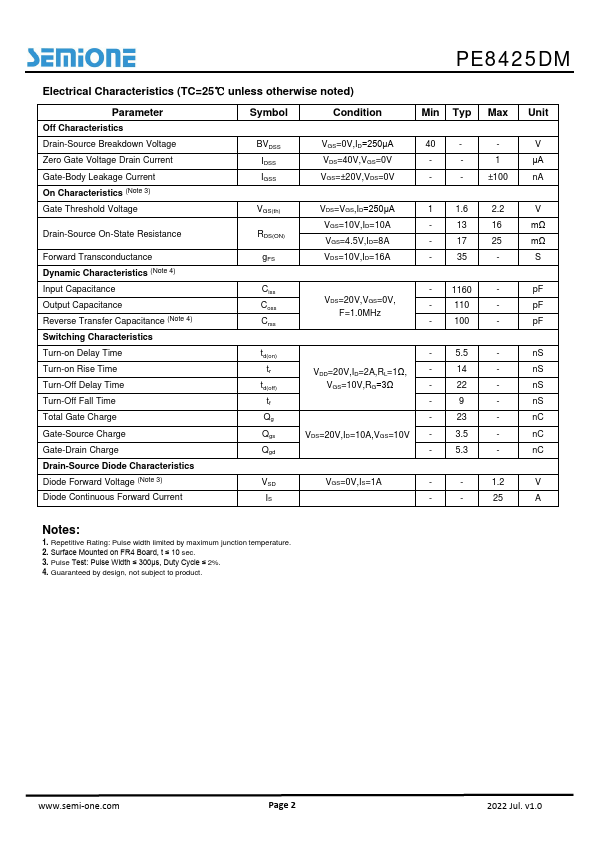

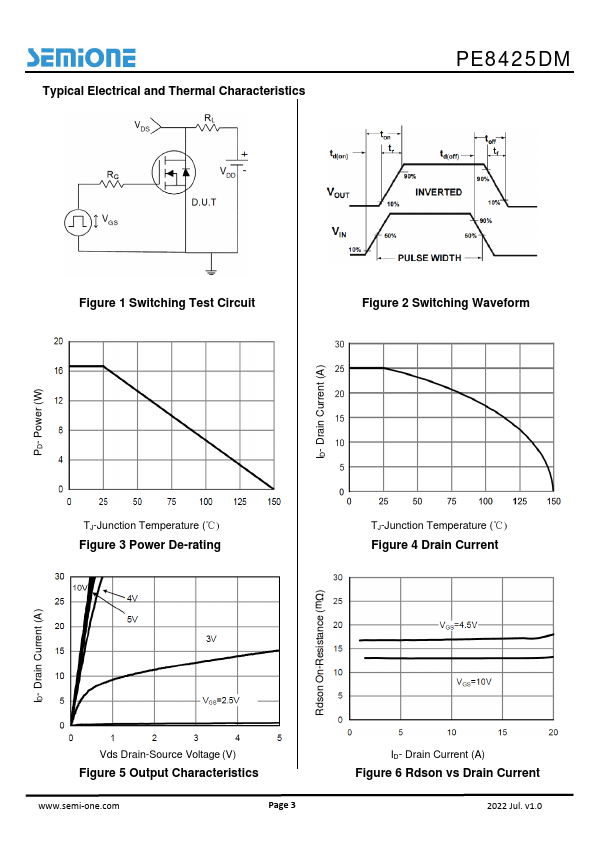

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PE8425DM
Manufacturer
Semione
File Size
1.07 MB
Datasheet
PE8425DM-Semione.pdf
Description
N-Channel Enhancement Mode Power MOSFET

Features

* VDS = 40V, ID = 25A RDS(ON) < 16mΩ @ VGS=10V RDS(ON) < 25mΩ @ VGS=4.5V
* High Power and current handing capability
* Lead free product is acquired
