PE80Q04N SBD MODULE

PE80Q04N Description

SBD MODULE .

PE80Q04N Features

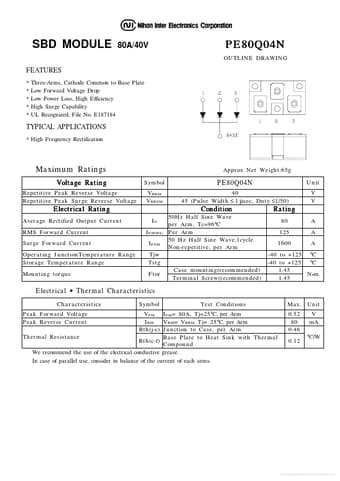

* 80A/40V PE80Q04N OUTLINE DRAWING
* Three-Arms, Cathode Common to Base Plate
* Low Forward Voltage Drop
* Low Power Loss, High Efficiency
* High Surge Capability

PE80Q04N Applications

* High Frequency Rectification Maximum Ratings Voltage Rating Repetitive Peak Reverse Voltage Repetitive Peak Surge Reverse Voltage Symbol VRRM VRRSM IO IF(RMS) IFSM Tjw Tstg Ftor Approx Net Weight:65g PE80Q04N 40 45 (Pulse Width ≤ 1 µsec, Duty ≤1/50) Unit V V A A A Electrical Rating Averag
