PE8200

N-Channel Enhancement Mode Power MOSFET

PE8200 Features

* VDS = 20V,ID =12A RDS(ON) < 10mΩ @ VGS=4.5V RDS(ON) < 13mΩ @ VGS=2.5V

* High power and current handing capability

* Lead free product is acquired

* Surface mount package D1 G1 G2 D2 S1 S2 Schematic diagram Marking and pin assignment Application

* Uni-directional load swit

PE8200 Datasheet (217.47 KB)

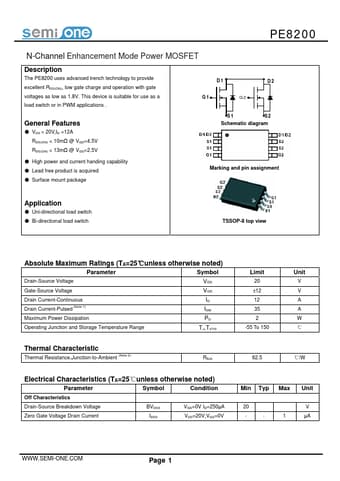

Preview of PE8200 PDF

Datasheet Details

Part number:

PE8200

Manufacturer:

semi one

File Size:

217.47 KB

Description:

N-channel enhancement mode power mosfet.
