PE8203

N-Channel Enhancement Mode Power MOSFET

PE8203 Features

* VDS = 20V, ID = 6A RDS(ON) < 28mΩ @ VGS=2.5V RDS(ON) < 20mΩ @ VGS=4.5V

* High Power and current handing capability

* Lead free product is acquired

* Surface Mount Package D1 G1 G2 D2 S1 S2 Schematic diagram Application

* Battery protection

* Load switch

* Power manage

PE8203 Datasheet (826.63 KB)

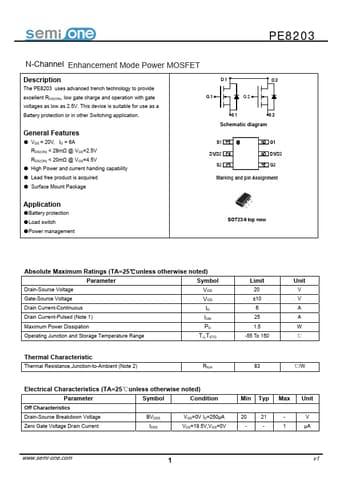

Preview of PE8203 PDF

Datasheet Details

Part number:

PE8203

Manufacturer:

semi one

File Size:

826.63 KB

Description:

N-channel enhancement mode power mosfet.
