PE8207 Datasheet, Mosfet, ChipSourceTek

PE8207 Features

  • Mosfet
  • VDS = 18V, ID = 4A RDS(ON) < 26mΩ @ VGS=4.5V RDS(ON) < 30mΩ @ VGS=3.8V RDS(ON) < 36mΩ @ VGS=2.5V Schematic diagram
  • High Power and current handing capability

PDF File Details

Part number:

PE8207

Manufacturer:

ChipSourceTek

File Size:

812.36kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. The PE8207 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of appl

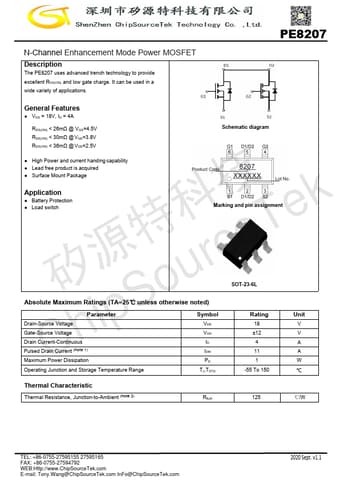

Datasheet Preview: PE8207 📥 Download PDF (812.36kb)
Page 2 of PE8207 Page 3 of PE8207

PE8207 Application

  • Applications PE8207 General Features
  • VDS = 18V, ID = 4A RDS(ON) < 26mΩ @ VGS=4.5V RDS(ON) < 30mΩ @ VGS=3.8V RDS(ON) < 36mΩ @ VGS=2.5V
