PE8205 Datasheet, Mosfet, semi one

PE8205 Features

  • Mosfet
  • VDS = 20V, ID = 6A RDS(ON) < 34mΩ @ VGS=2.5V RDS(ON) < 24mΩ @ VGS=4.5V
  • High Power and current handing capability
  • Lead free product is acquired
  • Su

PDF File Details

Part number:

PE8205

Manufacturer:

semi one

File Size:

816.62kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. The 8205 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5

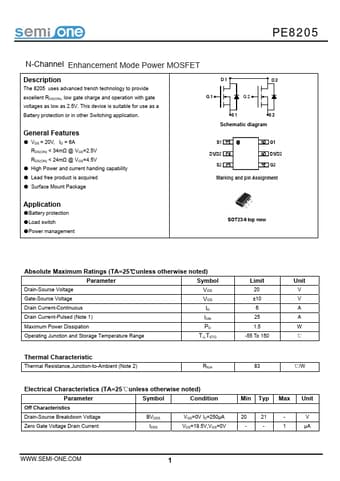

Datasheet Preview: PE8205 📥 Download PDF (816.62kb)
Page 2 of PE8205 Page 3 of PE8205
