PE8205L Datasheet, Mosfet, ChipSourceTek

PE8205L Features

  • Mosfet
  • VDS = 20V, ID = 6.2A RDS(ON) < 20mΩ @ VGS=4.5V RDS(ON) < 22mΩ @ VGS=3.8V RDS(ON) < 28mΩ @ VGS=2.5V Schematic diagram
  • High Power and current handing capability

PDF File Details

Part number:

PE8205L

Manufacturer:

ChipSourceTek

File Size:

1.06MB

Download:

📄 Datasheet

Description:

N-channel power mosfet. The PE8205L uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of app

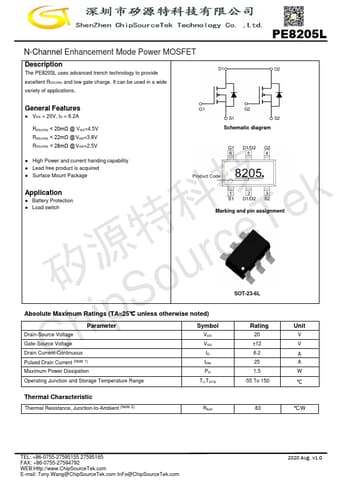

Datasheet Preview: PE8205L 📥 Download PDF (1.06MB)
Page 2 of PE8205L Page 3 of PE8205L

PE8205L Application

  • Applications PE8205L General Features
  • VDS = 20V, ID = 6.2A RDS(ON) < 20mΩ @ VGS=4.5V RDS(ON) < 22mΩ @ VGS=3.8V RDS(ON) < 28mΩ @ VGS=2.5
