PE8209HM1 N-Channel Enhancement Mode Power MOSFET

PE8209HM1 Features

* VDS = 18V, ID = 10A RDS(ON) < 12mΩ @ VGS=4.5V RDS(ON) < 13mΩ @ VGS=3.8V RDS(ON) < 15.5mΩ @ VGS=3.1V RDS(ON) < 20mΩ @ VGS=2.5V Schematic diagram ESD Rating: 4000V HBM

* High Power and current handing capability

* Lead free product is acquired

* Surface Mount Package k Application

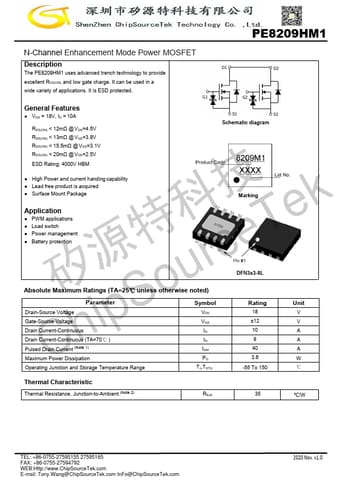

PE8209HM1-ChipSourceTek_removed.pdf

PE8209HM1 Datasheet Preview — This datasheet PDF includes multiple part numbers: PE8209HM1, PE8209HM1-ChipSourceTek. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PE8209HM1, PE8209HM1-ChipSourceTek

Manufacturer:

ChipSourceTek

File Size:

739.04 KB

Description:

N-channel enhancement mode power mosfet.

Note:

This datasheet PDF includes multiple part numbers: PE8209HM1, PE8209HM1-ChipSourceTek.
Please refer to the document for exact specifications by model.
