GS2MA, GS2AA - Surface Mount General Purpose Rectifier

GS2MA Description

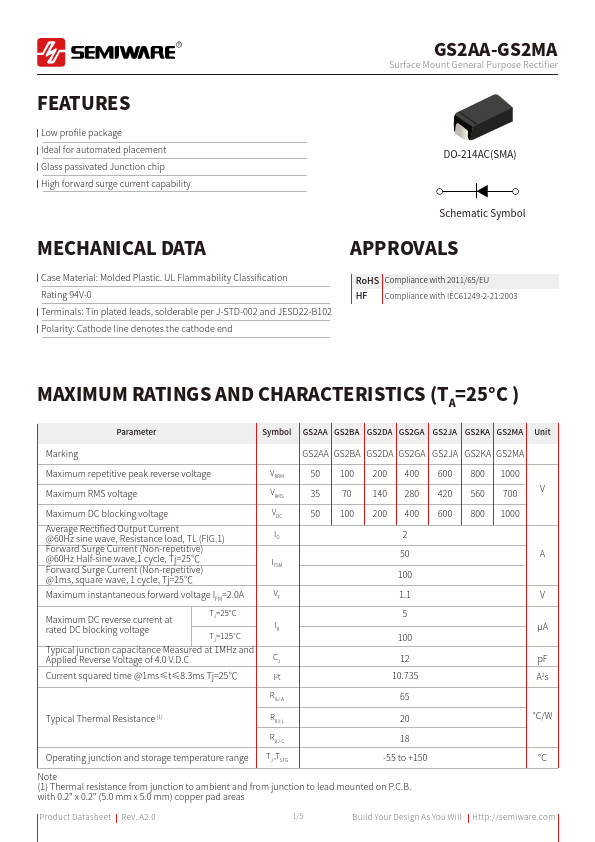

R GS2AA-GS2MA Surface Mount General Purpose Rectifier .

GS2MA Features

* Low profile package Ideal for automated placement Glass passivated Junction chip High forward surge current capability DO-214AC(SMA) Schematic Symbol MECHANICAL DATA APPROVALS Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Terminals: Tin plated leads, solderable per J-

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS2MA, GS2AA. Please refer to the document for exact specifications by model.

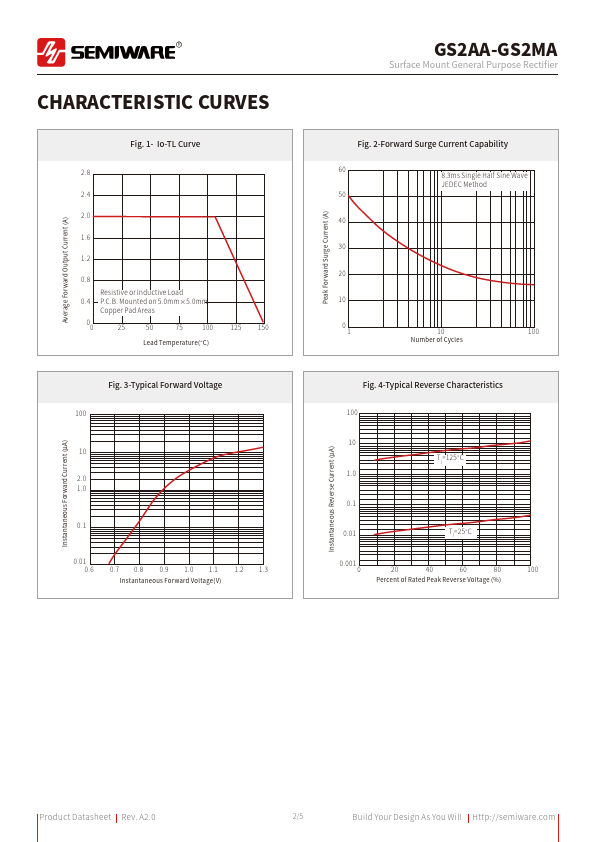

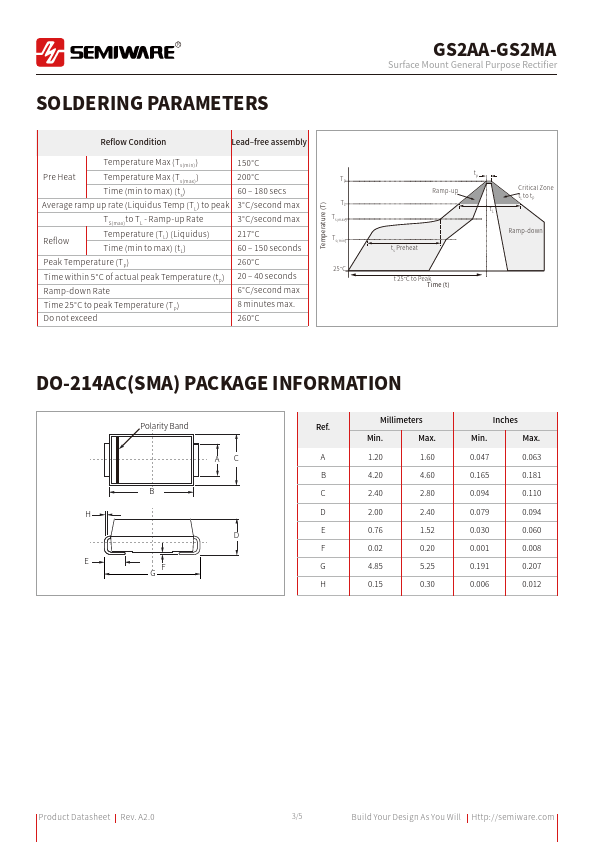

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS2MA, GS2AA
Manufacturer
Semiware
File Size
90.96 KB
Datasheet
GS2AA-Semiware.pdf
Description
Surface Mount General Purpose Rectifier
Note
This datasheet PDF includes multiple part numbers: GS2MA, GS2AA.
Please refer to the document for exact specifications by model.
