SVF20B14 - Transient Voltage Suppressor

SVF20B14 Description

R .

SVF20B14 Features

* Low profile package Ideal for automated placement 200 Watt peak pulse power capability with a 10/1000μs waveform For surface mounted applicatons to optimize board space Excellent clamping capability Very fast response time Low incremental surge resistance SVF20B14 Transient Voltage Suppressor SOD-12

SVF20B14 Applications

* Power supply protection Automotive application Industrial application Power management APPROVALS RoHS Compliance with 2011/65/EU HF Compliance with IEC61249-2-21:2003 MAXIMUM RATINGS (TA=25°C ) Parameter Peak Pulse Power Dissipation on 10/1000μs waveform (Note1) Steady State Power Dissipation at

📥 Download Datasheet

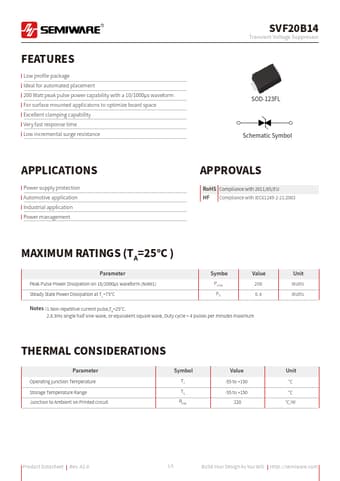

Preview of SVF20B14 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SVF20B14
Manufacturer
Semiware
File Size
254.40 KB
Datasheet
SVF20B14-Semiware.pdf
Description
Transient Voltage Suppressor
