SVF23N50PN

23A 500V N-CHANNEL MOSFET

SILAN MICROELECTRONICS

SVF23N50PN Features

* 23A, 500V, RDS(on(typ)=0.21@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability 1 23 TO-3P ORDERING INFORMATION Part No. SVF23N50PN Package TO-3P Marking 23N50 Hazardous Substance Control Pb free Packing Type Tube HANGZHOU SILAN MICROELE

SVF23N50PN General Description

SVF23N50PN is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide sup.

SVF23N50PN Datasheet (286.36 KB)

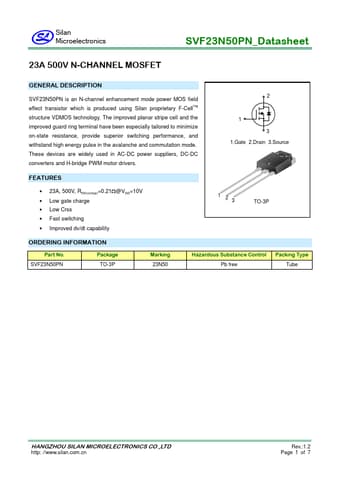

SVF23N50PN Datasheet Preview — Preview of SVF23N50PN PDF

Datasheet Details

Part number:

SVF23N50PN

Manufacturer:

SILAN MICROELECTRONICS

File Size:

286.36 KB

Description:

23a 500v n-channel mosfet.
