SVF20N50PN, SVF20N50F Datasheet - SILAN MICROELECTRONICS

SVF20N50PN 20A 500V N-CHANNEL MOSFET

SVF20N50F/PN is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide s.

SVF20N50PN Features

* ∗ 20A, 500V, RDS(on(typ)=0.20Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF20N50F SVF20N50PN Package TO-220F-3L TO-3PN Marking SVF20N50F 20N50 Material Pb free Pb free Packing Tube Tube HANGZHOU SILAN MICROELE

SVF20N50F-SILANMICROELECTRONICS.pdf

This datasheet PDF includes multiple part numbers: SVF20N50PN, SVF20N50F. Please refer to the document for exact specifications by model.

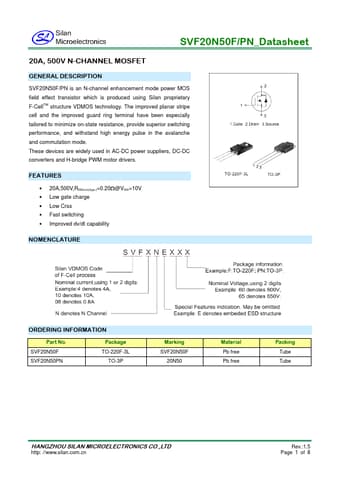

SVF20N50PN Datasheet Preview Page 2 SVF20N50PN Datasheet Preview Page 3

Datasheet Details

Part number:

SVF20N50PN, SVF20N50F

Manufacturer:

SILAN MICROELECTRONICS

File Size:

281.46 KB

Description:

20a 500v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVF20N50PN, SVF20N50F.
Please refer to the document for exact specifications by model.
