SMC3401AS - Single P-Channel MOSFET

Semtron

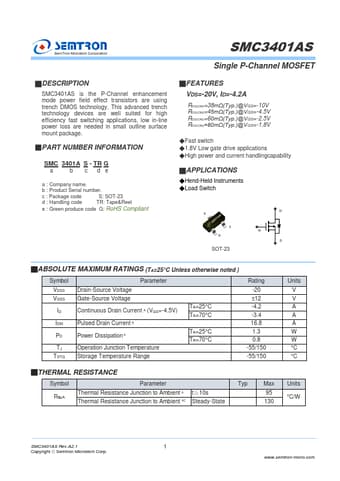

SMC3401AS Datasheet Preview — Preview of SMC3401AS PDF

Datasheet Details

Part number	SMC3401AS
Manufacturer	Semtron
File Size	291.99 KB
Description	Single P-Channel MOSFET
Datasheet	SMC3401AS-Semtron.pdf

SMC3401AS Product details

Description

SMC3401AS is the P-Channel enhancement mode power field effect transistors are using trench DMOS technology. PART NUMBER INFORMATION SMC 3401A S - TR G a b c de a : Company name.b : Product Serial number.c : Package code S: SOT-23 d : Handling code TR: Tape&Reel e : Green produce code G: RoHS Compliant

Features

VDS=-20V, ID=-4.2A RDS(ON)=38mΩ(Typ. )@VGS=-10V RDS(ON)=45mΩ(Typ. )@VGS=-4.5V RDS(ON)=60mΩ(Typ. )@VGS=-2.5V RDS(ON)=80mΩ(Typ. )@VGS=-1.8V.
Fast switch.
1.8V Low gate drive.
