SMC3401S - Single P-Channel MOSFET

Semtron

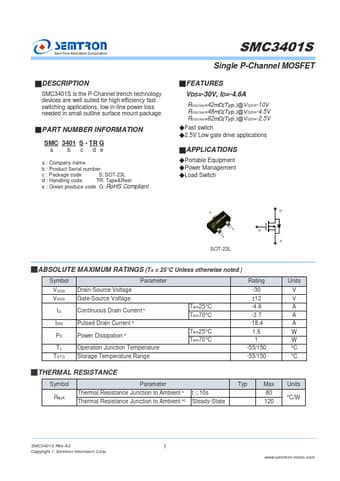

SMC3401S Datasheet Preview — Preview of SMC3401S PDF

Datasheet Details

Part number	SMC3401S
Manufacturer	Semtron
File Size	876.72 KB
Description	Single P-Channel MOSFET
Datasheet	SMC3401S-Semtron.pdf

SMC3401S Product details

Description

SMC3401S is the P-Channel trench technology devices are well suited for high efficiency fast switching applications, low in-line power loss needed in small outline surface mount package PART NUMBER INFORMATION SMC 3401 S - TR G a b c de a : Company name.b : Product Serial number.c : Package code S: SOT-23L d : Handling code TR: Tape&Reel e : Green produce code G: RoHS Compliant SMC3401S Single P-Channel MOSFET

Features

VDS=-30V, ID=-4.6A RDS(ON)=42mΩ(Typ. )@VGS=-10V RDS(ON)=48mΩ(Typ. )@VGS=-4.5V RDS(ON)=62mΩ(Typ. )@VGS=-2.5V.
Fast switch.
2.5V Low gate drive.
