SMC3401SN - Single P-Channel MOSFET

Semtron

SMC3401SN Datasheet Preview — Preview of SMC3401SN PDF

Datasheet Details

Part number	SMC3401SN
Manufacturer	Semtron
File Size	859.78 KB
Description	Single P-Channel MOSFET
Datasheet	SMC3401SN-Semtron.pdf

SMC3401SN Product details

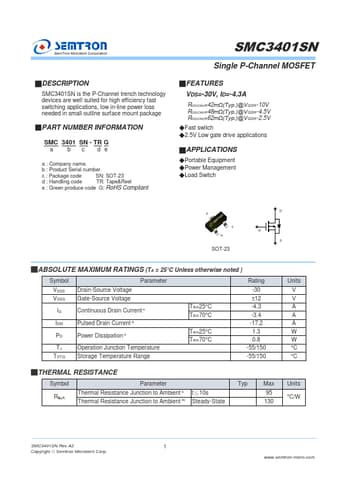

Description

SMC3401SN is the P-Channel trench technology devices are well suited for high efficiency fast switching applications, low in-line power loss needed in small outline surface mount package PART NUMBER INFORMATION SMC 3401 SN - TR G a b c de a : Company name.b : Product Serial number.c : Package code SN: SOT-23 d : Handling code TR: Tape&Reel e : Green produce code G: RoHS Compliant SMC3401SN Single P-Channel MOSFET

Features

VDS=-30V, ID=-4.3A RDS(ON)=42mΩ(Typ. )@VGS=-10V RDS(ON)=48mΩ(Typ. )@VGS=-4.5V RDS(ON)=62mΩ(Typ. )@VGS=-2.5V.
Fast switch.
2.5V Low gate drive.
