SMC3401GS - Single P-Channel MOSFET

Semtron

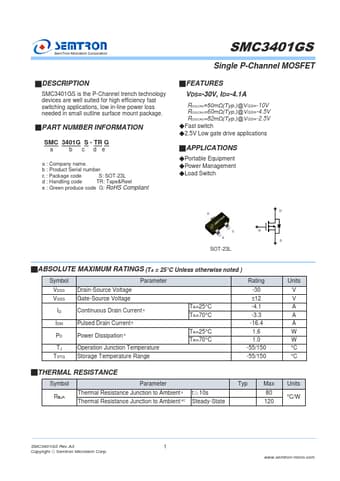

SMC3401GS Datasheet Preview — Preview of SMC3401GS PDF

Datasheet Details

Part number	SMC3401GS
Manufacturer	Semtron
File Size	366.45 KB
Description	Single P-Channel MOSFET
Datasheet	SMC3401GS-Semtron.pdf

SMC3401GS Product details

Description

SMC3401GS is the P-Channel trench technology devices are well suited for high efficiency fast switching applications, low in-line power loss needed in small outline surface mount package. PART NUMBER INFORMATION SMC 3401G S - TR G a b c de a : Company name.b : Product Serial number.c : Package code S: SOT-23L d : Handling code TR: Tape&Reel e : Green produce code G: RoHS Compliant SMC3401GS Single P-Channel MOSFET

Features

VDS=-30V, ID=-4.1A RDS(ON)=50mΩ(Typ. )@VGS=-10V RDS(ON)=60mΩ(Typ. )@VGS=-4.5V RDS(ON)=82mΩ(Typ. )@VGS=-2.5V.
Fast switch.
2.5V Low gate drive.
