SMC4842M Datasheet - Semtron

Dual N-Channel MOSFET

SMC4842M Features

* VDS=30V, ID=8A RDS(ON)=16mΩ(Typ.)@VGS=10V RDS(ON)=20mΩ(Typ.)@VGS=4.5V

* High power and current handling capability

* APPLICATIONS

* DC-DC Power System

* Portable Equipment

* Load Switch D2 D2 D1 D1 D1 D2 G1 G2 G2 S2 G1 S1 S1 S2 SOP-8

* ABSOLUTE MAXIMUM RATINGS (TA = 25

SMC4842M General Description

SMC4842M is the Dual N-Channel enhancement mode power field effect transistors are using trench DMOS technology.This advanced technology has been especially tailored to minimize on-state resistance.This device is ideal for load switch applications. *PART NUMBER INFORMATION SMC 4842 M - TR G a.

SMC4842M Datasheet (288.69 KB)

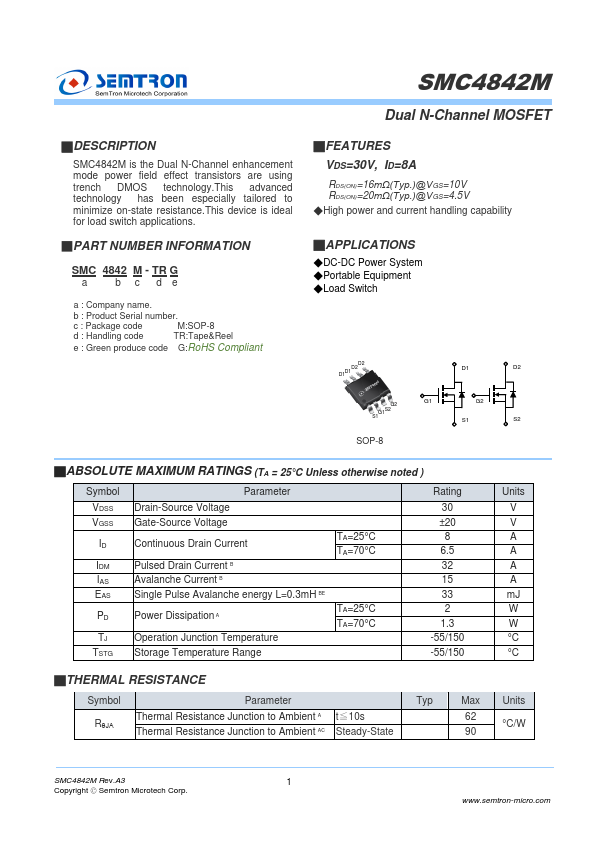

SMC4842M Datasheet Preview — Preview of SMC4842M PDF

Datasheet Details

Part number:

SMC4842M

Manufacturer:

Semtron

File Size:

288.69 KB

Description:

Dual n-channel mosfet.
