SMC4802M Datasheet - Semtron

Dual N-Channel MOSFET

SMC4802M Features

* VDS = 30V, ID = 12A RDS(ON)=7mΩ(Typ.)@VGS=10V RDS(ON)=8mΩ(Typ.)@VGS=4.5V

* 100% EAS Guaranteed

* Improved dv/dt capability

* High power and current handling capability

* APPLICATIONS

* Power Management

* DC/DC Power System

* Load Switch D2 D2 D1 D1 D1 D2 G1 G2 G2 S2 G1

SMC4802M General Description

SMC4802 is the Dual N-Channel enhancement mode power field effect transistors are using trench DMOS technology.This advanced technology has been especially tailored to minimize on-state resistance.This device is ideal for load switch applications. *PART NUMBER INFORMATION SMC 4802 M - TR G a .

SMC4802M Datasheet (332.21 KB)

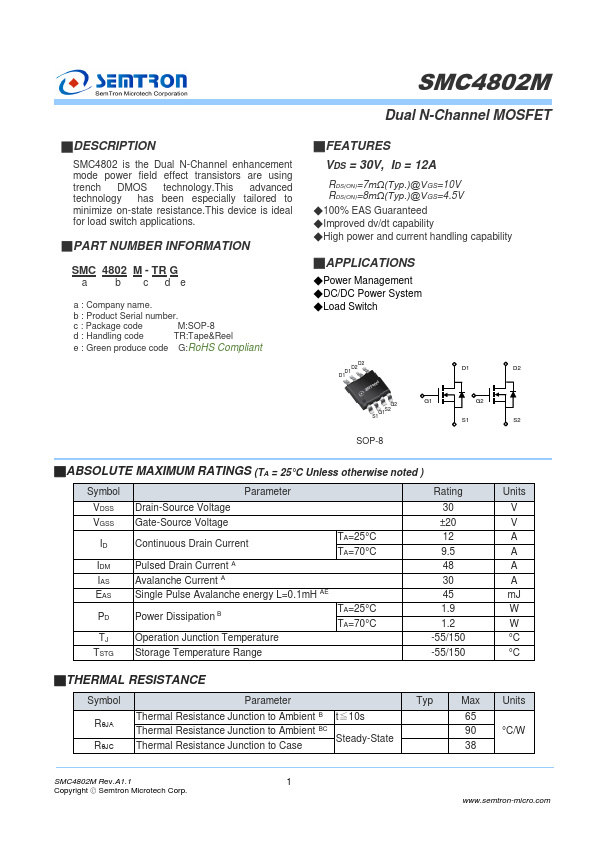

SMC4802M Datasheet Preview — Preview of SMC4802M PDF

Datasheet Details

Part number:

SMC4802M

Manufacturer:

Semtron

File Size:

332.21 KB

Description:

Dual n-channel mosfet.
