SMC4861NA Datasheet - Semtron

Single P-Channel MOSFET

SMC4861NA Features

* VDS=-30V, ID=-50A RDS(ON)=7mΩ(Typ.)@VGS=-10V RDS(ON)=10mΩ(Typ.)@VGS=-4.5V

* 100% EAS Guaranteed

* High power and current handling capability

* APPLICATIONS

* Load Switch

* DC-DC Power Management D DD D D G SS SG Pin 1 DFN3.3X3.3A-8 S

* ABSOLUTE MAXIMUM RATINGS (TA=25°C Unless

SMC4861NA General Description

SMC4861NA is the P-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior, fast switching performance, and withstand high energy pulse in the avalanche and commu.

SMC4861NA Datasheet (333.14 KB)

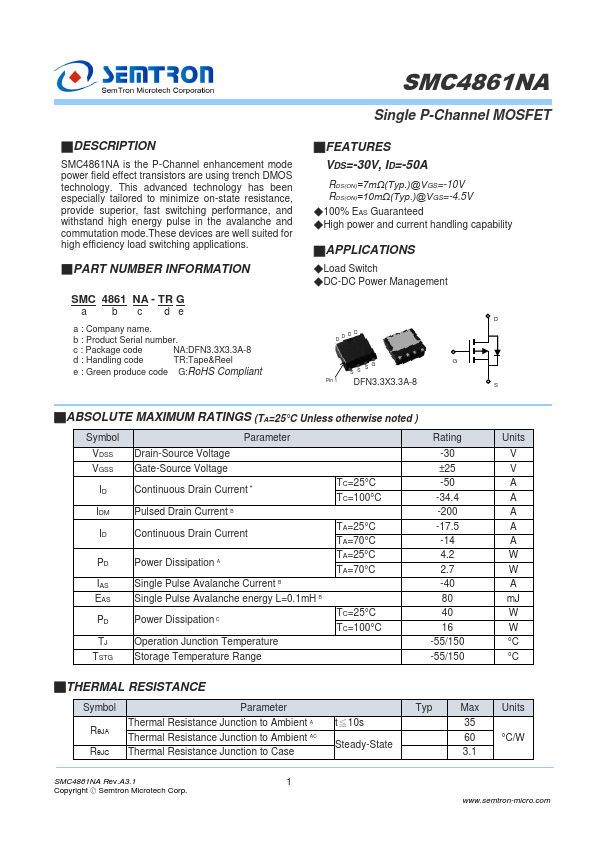

Preview of SMC4861NA PDF

Datasheet Details

Part number:

SMC4861NA

Manufacturer:

Semtron

File Size:

333.14 KB

Description:

Single p-channel mosfet.

📁 Related Datasheet

SMC4866 N-Channel Enhancement Mode MOSFET (Semtron)

SMC4866NA Single N-Channel MOSFET (Semtron)

SMC4869NA Single P-Channel MOSFET (Semtron)

SMC48 GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS (MIC)

SMC4802 Dual N-Channel Enhancement Mode MOSFET (Semtron)

SMC4802M Dual N-Channel MOSFET (Semtron)

SMC4812 N-Channel Enhancement Mode MOSFET (Semtron)

SMC4834 N-Channel Enhancement Mode MOSFET (Semtron)

SMC4842 Dual N-Channel Enhancement Mode MOSFET (Semtron)

SMC4842M Dual N-Channel MOSFET (Semtron)

TAGS

SMC4861NA Single P-Channel MOSFET Semtron

Image Gallery

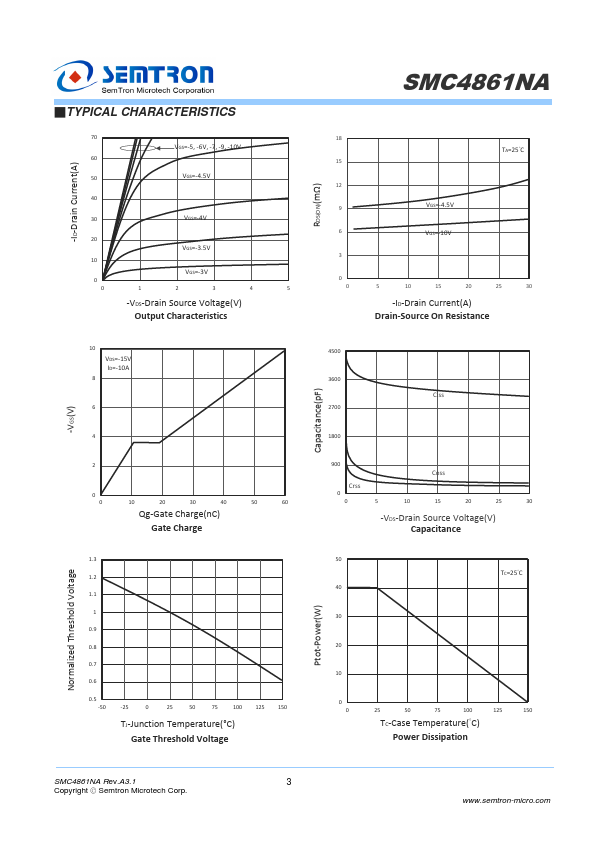

SMC4861NA Datasheet Preview Page 2 SMC4861NA Datasheet Preview Page 3
