SMC4869NA - Single P-Channel MOSFET

Semtron

📥 Download Datasheet

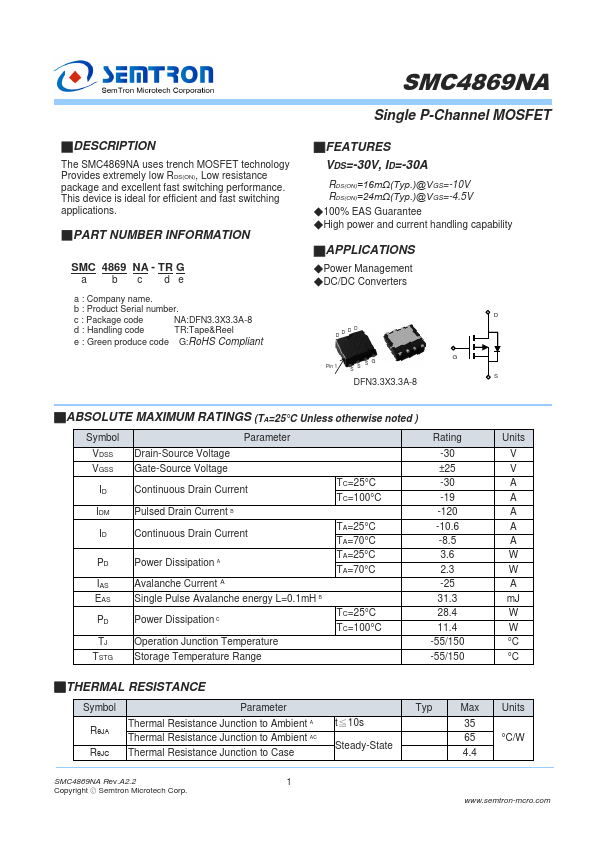

SMC4869NA Datasheet Preview — Preview of SMC4869NA PDF

Datasheet Details

Part number	SMC4869NA
Manufacturer	Semtron
File Size	332.88 KB
Description	Single P-Channel MOSFET
Datasheet	SMC4869NA-Semtron.pdf

SMC4869NA Product details

Description

The SMC4869NA uses trench MOSFET technology Provides extremely low RDS(ON), Low resistance package and excellent fast switching performance. PART NUMBER INFORMATION SMC 4869 NA - TR G a b c de a : Company name.b : Product Serial number.c : Package code NA:DFN3.3X3.3A-8 d : Handling code TR:Tape&Reel e : Green produce code G:RoHS Compliant SMC4869NA Single P-Channel MOSFET

Features

VDS=-30V, ID=-30A RDS(ON)=16mΩ(Typ. )@VGS=-10V RDS(ON)=24mΩ(Typ. )@VGS=-4.5V.
100% EAS Guarantee.
High power and current handling capability.
