SMC4880NA - Single N-Channel MOSFET

Semtron

📥 Download Datasheet

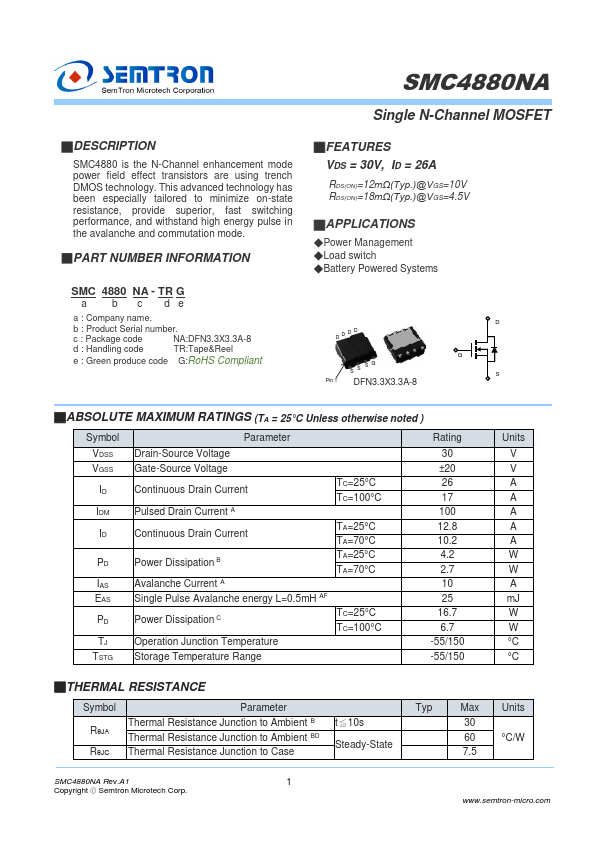

SMC4880NA Datasheet Preview — Preview of SMC4880NA PDF

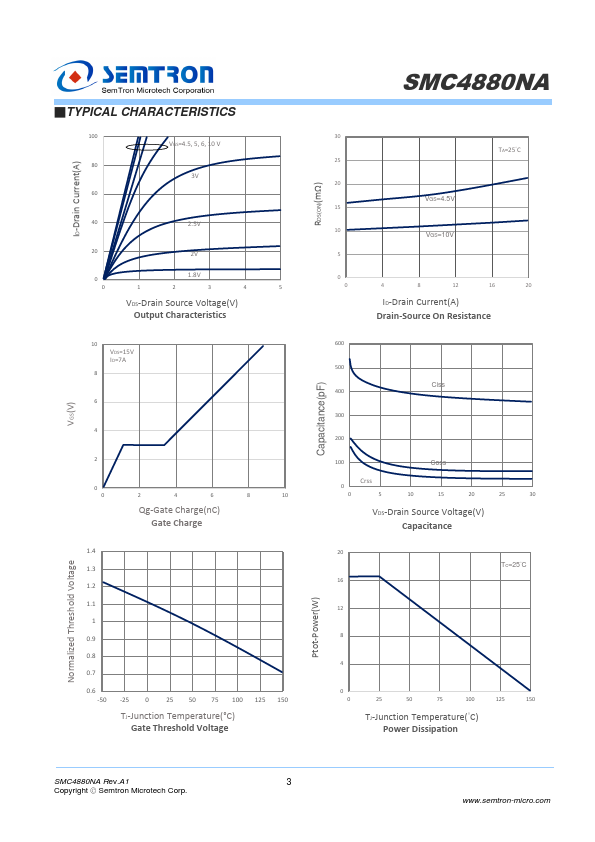

datasheet Preview Page 2

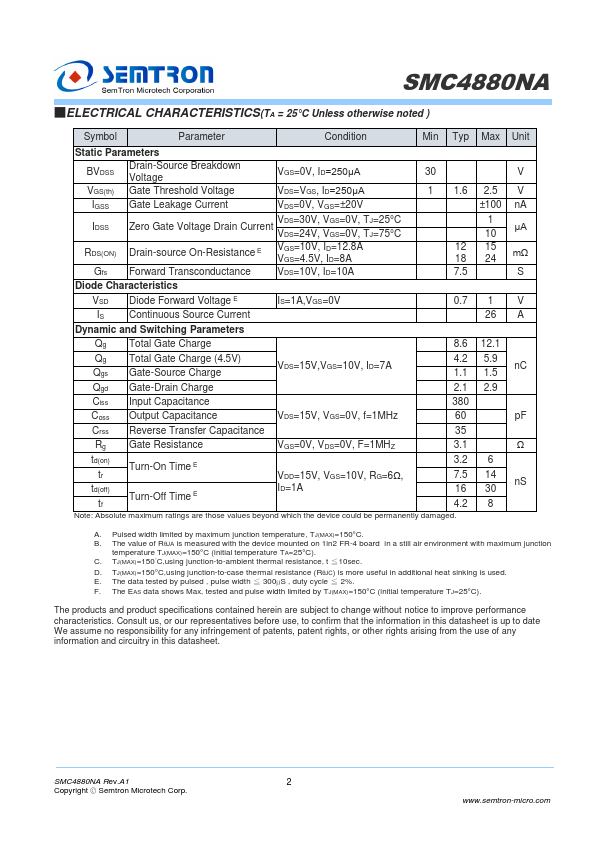

datasheet Preview Page 3

Datasheet Details

Part number	SMC4880NA
Manufacturer	Semtron
File Size	388.86 KB
Description	Single N-Channel MOSFET
Datasheet	SMC4880NA-Semtron.pdf

SMC4880NA Product details

Description

SMC4880 is the N-Channel enhancement mode power field effect transistors are using trench DMOS technology. PART NUMBER INFORMATION

Features

VDS = 30V, ID = 26A RDS(ON)=12mΩ(Typ. )@VGS=10V RDS(ON)=18mΩ(Typ. )@VGS=4.5V.
