20VZ11 - Low Power-Loss Voltage Regulators

20VZ11 Description

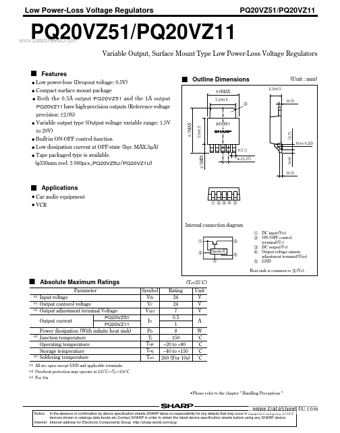

Low Power-Loss Voltage Regulators PQ20VZ51/PQ20VZ11 www.DataSheet4U.com PQ20VZ51/PQ20VZ11 Variable Output, Surface Mount Type Low Power-Loss Voltag.

20VZ11 Features

* 2.5MIN Low power-loss (Dropout voltage: 0.5V) q Compact surface mount package q Both the 0.5A output PQ20VZ51 and the 1A output PQ20VZ11 have high-precision outputs (Reference voltage precision: ±2.0%) q Variable output type (Output voltage variable range: 1.5V to 20V) q Built-in ON-OFF control fu

20VZ11 Applications

* ➀➁➂➃ ➄ Car audio equipment q VCR Internal connection diagram ➀ ➁ Specific IC ➂ ➃ ➀ ➁ ➂ ➃ ➄ ➄ DC input(VIN) ON/OFF control terminal(VC) DC output(VO) Output voltage minute adjustment terminal(VADJ) GND Heat sink is common to ➂(VO). s ❇1 ❇1 ❇1 Absolute Maximum Ratings Parameter Input voltage
