20VZ51, PQ20VZ51

Low Power-Loss Voltage Regulators PQ20VZ51/PQ20VZ11 PQ20VZ51/PQ20VZ11 Variable Output, Surface Mount Type Low Power-Loss Voltage Regulators s q Fe.

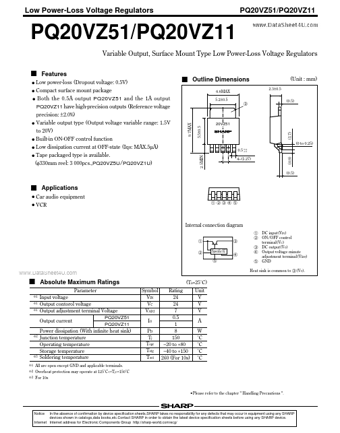

datasheet Preview Page 1 from Datasheet4u.com

20VZ51_SharpElectrionicComponents.pdf

20VZ51 Datasheet Preview — Preview of 20VZ51 PDF

Datasheet Details

Part number:

20VZ51

Manufacturer:

Sharp Electrionic Components

File Size:

97.75 KB

Description:

PQ20VZ51

Features

* 2.5MIN Low power-loss (Dropout voltage: 0.5V) q Compact surface mount package q Both the 0.5A output PQ20VZ51 and the 1A output PQ20VZ11 have high-precision outputs (Reference voltage precision: ±2.0%) q Variable output type (Output voltage variable range: 1.5V to 20V) q Built-in ON-OFF control fu

Applications

* ➀➁➂➃ ➄ Car audio equipment q VCR Internal connection diagram ➀ ➁ Specific IC ➂ ➃ ➀ ➁ ➂ ➃ ➄ ➄ DC input(VIN) ON/OFF control terminal(VC) DC output(VO) Output voltage minute adjustment terminal(VADJ) GND www. DataSheet4U. com Heat sink is common to ➂(VO). s ❇1 ❇1 ❇1 Absolute Maximum Ratings Pa
