20VLD90-R - AC Line Rated Ceramic Disc Capacitors

20VLD90-R Description

www.vishay.com 20VL Series Vishay Cera-Mite AC Line Rated Ceramic Disc Capacitors Class X2, 400 VAC .
Ceramic Class Ceramic Dielectric Voltage (VAC) Min.

20VLD90-R Features

* Complying with IEC 60384-14 3rd edition
* High reliability
* Radial leads
* Singlelayer AC disc safety capacitors

20VLD90-R Applications

* X2 according to IEC 60384-14.3
* Across-the-line
* RFI filtering DESIGN The capacitors consist of a ceramic disc of which both sides are silver-plated. Connection leads are made of tinned copper having a diameter of 0.025" (0.64 mm). The capacitors may be supplied with radi

📥 Download Datasheet

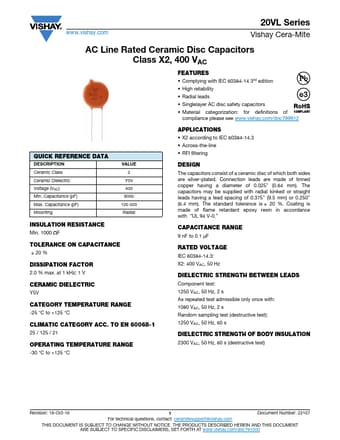

Preview of 20VLD90-R PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
20VLD90-R
Manufacturer
Vishay ↗
File Size
136.00 KB
Datasheet
20VLD90-R-Vishay.pdf
Description
AC Line Rated Ceramic Disc Capacitors
