20VLS20-R, 20VLD90-R Datasheet - Vishay

20VLS20-R, 20VLD90-R, AC Line Rated Ceramic Disc Capacitors

www.vishay.com 20VL Series Vishay Cera-Mite AC Line Rated Ceramic Disc Capacitors Class X2, 400 VAC .
Ceramic Class Ceramic Dielectric Voltage (VAC) Min.

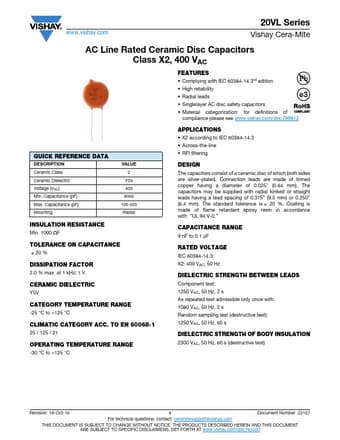

datasheet Preview Page 1 from Datasheet4u.com

20VLD90-R-Vishay.pdf

20VLS20-R Datasheet Preview — This datasheet PDF includes multiple part numbers: 20VLS20-R, 20VLD90-R. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

20VLS20-R, 20VLD90-R

Manufacturer:

Vishay ↗

File Size:

136.00 KB

Description:

AC Line Rated Ceramic Disc Capacitors

Note:

This datasheet PDF includes multiple part numbers: 20VLS20-R, 20VLD90-R.
Please refer to the document for exact specifications by model.

Features

* Complying with IEC 60384-14 3rd edition
* High reliability
* Radial leads
* Singlelayer AC disc safety capacitors

Applications

* X2 according to IEC 60384-14.3
* Across-the-line
* RFI filtering DESIGN The capacitors consist of a ceramic disc of which both sides are silver-plated. Connection leads are made of tinned copper having a diameter of 0.025" (0.64 mm). The capacitors may be supplied with radi
