GP2W0002YP Low Power Infrared Transceiver

DESCRIPTION The SHARP GP2W0001YP is one of the smallest transceiver modules. Even at low operating voltages, it provides a reliable interface between logic and IR signals for through-air, serial, half-duplex IR wireless data links and is designed to satisfy IrDA physical layer specifications. OUTL.

GP2W0001YP/GP2W0002YP IrDA Technical Information Low Power Infrared Transceiver The GP2W0002YP is the same module, and adds an integral Electro-Magnetic Interference (EMI) shield. While IR energy is inherently immune to EMI, the receiving devices themselves are not. This shield provides an additional level of protection in electromagnetically noisy environments such as PCs and other digital products. The SHARP GP2W0001YP/GP2W0002YP infrared transceiver modules contain a high speed, high efficie.

GP2W0002YP Features

* IrDA 1.2a Low Power Option Compatible:

* IF = 27 mA (TYP.) for an operating distance of 20 cm

* Small Package Design for IrDA 1.0 Compliant Infrared Transceiver 8.7 (W) × 4.2 (D) × 3.15 (H) mm

* Receiver output provides a full output pulse for the received input sig

GP2W0002YP Datasheet (145.90 KB)

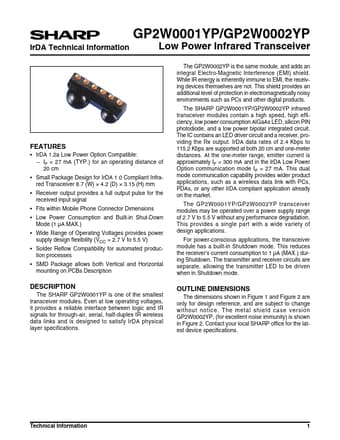

GP2W0002YP Datasheet Preview — Preview of GP2W0002YP PDF

Datasheet Details

Part number:

GP2W0002YP

Manufacturer:

Sharp Electrionic Components

File Size:

145.90 KB

Description:

Low power infrared transceiver.
