S202S11

SIP Type SSR with Snubber Circuit and Mouning Capability for External Heat Sink

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Sharp Microelectronics of the Americas S202S11 SSR RELAY SPST-NO 8A 80-240V DigiKey 0 200 units
$5.96

S202S11 Datasheet (58.14 KB)

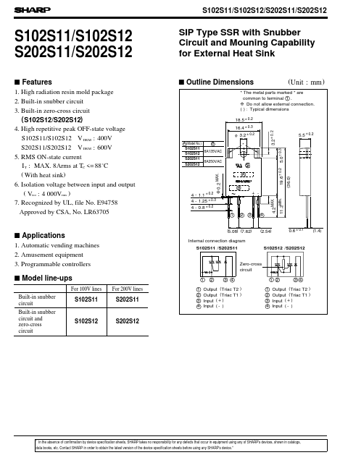

Preview of S202S11 PDF

Datasheet Details

Part number:

S202S11

Manufacturer:

Sharp Electrionic Components

File Size:

58.14 KB

Description:

Sip type ssr with snubber circuit and mouning capability for external heat sink.

S202S11 Features

* 1. High radiation resin mold package 2. Built-in snubber circuit 3. Built-in zero-cross circuit ( S102S12/S202S12) 4. High repetitive peak OFF-state voltage S102S11/S102S12 V DRM : 400V S202S11/S202S12 V DRM : 600V 5. RMS ON-state current I T : MAX. 8Arms at TC
