S202SE1 Datasheet - Sharp Electrionic Components

S202SE1, SIP Type SSR for Medium Power Control

S202SE1/S202SE2/S216SE1/S216SE2 S202SE1/S202SE2 S216SE1/S216SE2 s .

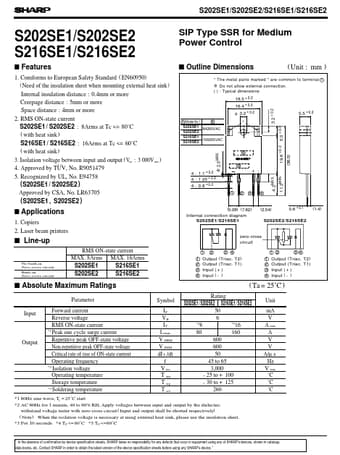

datasheet Preview Page 1 from Datasheet4u.com

S202SE1_SharpElectrionicComponents.pdf

S202SE1 Datasheet Preview — Preview of S202SE1 PDF

Datasheet Details

Part number:

S202SE1

Manufacturer:

Sharp Electrionic Components

File Size:

64.56 KB

Description:

SIP Type SSR for Medium Power Control

Features

* 1. Comforms to European Safety Standard ( EN60950) ( Need of the insulation sheet when mounting external heat sink ) Internal insulation distance : 0.4mm or more Creepage distance : 5mm or more Space distance : 4mm or more 2. RMS ON-state current S202SE1 / S202SE2 : 8Arms at Tc

Applications

* 1. Copiers 2. Laser beam printers (5.08) (7.62) Internal connection diagram S202SE1 / S216SE1 (2.54) (1.4) S202SE2 / S216SE2 s Line-up RMS ON-state current MAX. 8Arms MAX. 16Arms S202SE1 S216SE1 S202SE2 S216SE2 1 2 3 4 zero-cross circuit 1 2 3 4 Output ( Triac. T2 ) Output ( Triac. T1 ) Input
