LH28F160S3-L - 16M-bit (2MB x 8/1MB x 16) Smart 3 Flash Memories

Datasheet Summary

Description

The LH28F16S3-L/S3H-L flash memories with Smart 3 technology are high-density, low-cost, nonvolatile, read/write storage solution for a wide range of applications, having high programming performance is achieved through high-optimized page buffer operations.

Features

  • Smart 3 technology.
  • 2.7 V or 3.3 V VCC.
  • 2.7 V, 3.3 V or 5 V VPP.
  • High speed write performance.
  • Two 32-byte page buffers.
  • 2.7 µs/byte write transfer rate.
  • Common Flash Interface (CFI).
  • Universal & upgradable interface.
  • Scalable Command Set (SCS) 16 M-bit (2 MB x 8/1 MB x 16) Smart 3 Flash Memories (Fast Programming).
  • High performance read access time LH28F160S3-L10/S3H-L10.
  • 100 ns (3.3±0.3 V)/120.

📥 Download Datasheet

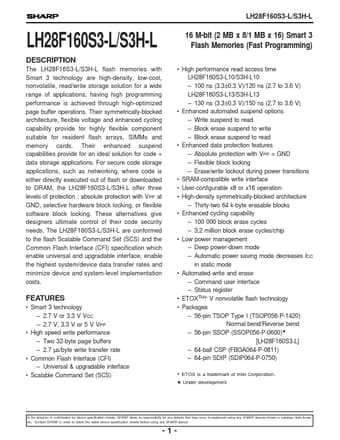

Datasheet preview – LH28F160S3-L

Datasheet Details

Part number LH28F160S3-L
Manufacturer Sharp
File Size 332.56 KB
Description 16M-bit (2MB x 8/1MB x 16) Smart 3 Flash Memories
Datasheet download datasheet LH28F160S3-L Datasheet
Additional preview pages of the LH28F160S3-L datasheet.

📁 Similar Datasheet

  • LH28F160S3-L10 - 16-MBIT(2MBx8/1MBx16) Smart 3 Flash MEMORY (Sharp Electrionic Components)
  • LH28F160S3HNS-TR - Flash Memory 16M (2Mb x 8 / 1Mb x 16) (Sharp Microelectronics)
  • LH28F160S3HNS-TV - Flash Memory (Sharp Microelectronics)
  • LH28F160S3HT-L10A - Flash Memory 16M (2MB bb 8/1MB bb 16) (Sharp Electrionic Components)
  • LH28F160S3NS-L10 - Flash Memory 16M (2MB bb 8/1MB bb 16) (Sharp Electrionic Components)
  • LH28F160S3T-L10A - Flash Memory 16M (2MB bb 8/1MB bb 16) (Sharp Electrionic Components)
  • LH28F160S5-L10 - 16-MBIT(2MBx8/MBx16)Smart 5 Flash MEMORY (Sharp Electrionic Components)
  • LH28F160S5-L70 - 16-MBIT(2MBx8/MBx16)Smart 5 Flash MEMORY (Sharp Electrionic Components)
  • LH28F160S5H-L - 16 M-bit (2 MB x 8/1 MB x 16) Smart 5 Flash Memories (Fast Programming) (Sharp Electrionic Components)
  • LH28F160S5HNS-S1 - Flash Memory 16Mbit (2Mbitx8/1Mbitx16) (Sharp Microelectronics)
Other Datasheets by Sharp

Full PDF Text Transcription

Click to expand full text
LH28F160S3-L/S3H-L LH28F160S3-L/S3H-L DESCRIPTION The LH28F16S3-L/S3H-L flash memories with Smart 3 technology are high-density, low-cost, nonvolatile, read/write storage solution for a wide range of applications, having high programming performance is achieved through high-optimized page buffer operations. Their symmetrically-blocked architecture, flexible voltage and enhanced cycling capability provide for highly flexible component suitable for resident flash arrays, SIMMs and memory cards. Their enhanced suspend capabilities provide for an ideal solution for code + data storage applications.
