LR36B15 Datasheet - Sharp

LR36B15 Signal Processing LSI

2 2. Pin Assignment 3 3. Pin Description 4 4. Block Diagram 8 5. Electrical characteristics 10 5.1. Absolute maximum ratings 10 5.2. Recommended operating conditions 11 5.3. DC characteristics 12 5.4. Analog characteristics 13 5.4.1. AFE block 13 5.4.2. Analog output block 15 5.4.3. Crystal .

Sep 22 2011 LR36B15 1. These specification sheets include materials protected under copyright of Sharp Corporation ("Sharp"). Please do not reproduce or cause anyone to reproduce them without Sharp's consent. 2. When using this product, please observe the absolute maximum ratings and the instructions for use outlined in these specification sheets, as well as the precautions mentioned below. Sharp assumes no responsibility for any damage resulting from use of the product which does not comply wi.

LR36B15 Features

* AFE for CCD

* 12bit AD convertor with CCD I/F

* CDS of 1Vpp input range

* Input clamping circuit

* PGA of gain range from -3dB to 36dB

* Black level calibration circuit

* Timing generator for CCD (TG)

* It corresponds to the CCD of 27

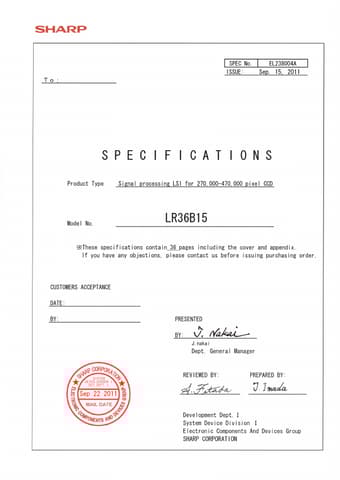

LR36B15 Datasheet (3.12 MB)

LR36B15 Datasheet Preview — Preview of LR36B15 PDF

Datasheet Details

Part number:

LR36B15

Manufacturer:

Sharp

File Size:

3.12 MB

Description:

Signal processing lsi.
