LR36B16

Signal Processing LSI

Sharp

LR36B16 Features

* AFE for CCD x 12bit AD convertor with CCD I/F x CDS of 1Vpp input range x Input clamping circuit x PGA of gain range from -3dB to 36dB x Black level calibration circuit

* Timing generator for CCD (TG) x It corresponds to the CCD of 270-thousand, 410-thousand and 520-thousand pixels

LR36B16 General Description

2 2. Pin Assignment 4 3. Pin Description 5 4. Electrical characteristics 9 4.1. Absolute maximum ratings 9 4.2. Recommended operating conditions 10 4.3. DC characteristics 11 4.4. Analog characteristics 12 4.4.1. AFE block 12 4.4.2. Analog output block 14 4.4.3. Crystal oscillator 15 4.4.4. Regul.

LR36B16 Datasheet (967.52 KB)

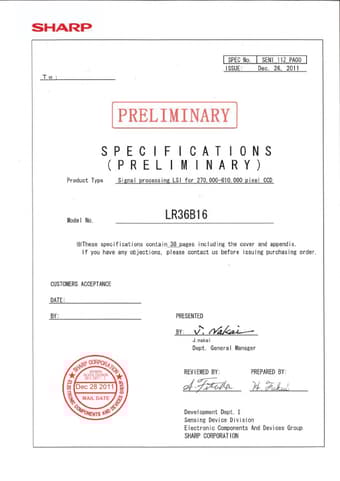

LR36B16 Datasheet Preview — Preview of LR36B16 PDF

Datasheet Details

Part number:

LR36B16

Manufacturer:

Sharp

File Size:

967.52 KB

Description:

Signal processing lsi.
Dec 28 2011 LR36B16 ᴾ 1. These specification sheets include materials prot.
