PQ05RF1 - 1A Output Low Power-Loss Voltage Regulators

PQ05RF1 Description

Low Power-Loss Voltage Regulators PQ05RF1 Series PQ05RF1 Series 1A Output Low Power-Loss Voltage Regulators s .

PQ05RF1 Features

* ¡Compact resin full-mold package ¡Low power-loss (Dropout voltage:MAX.0.5V) ¡ Built-in ON/OFF control terminal (PQ05RF1/PQ05RF11 series) ¡Built-in output voltage minute adjustment terminal (Critical rate of ripple rejection is improved. ) (PQ05RF1V series) ¡Lead forming type (PQ05RF1A/1B series) is a

PQ05RF1 Applications

* ¡Seris power supply for various electronic equipment such as VCRs and musical instruments 1 s Equivalent Circuit Diagram PQ05RF1series/PQ05RF11series 1 2 1 PQ05RF1Vseries 2 + Reference voltage generation circuit + Reference voltage generation circuit
* ASO protection circuit 4
* ASO pro

📥 Download Datasheet

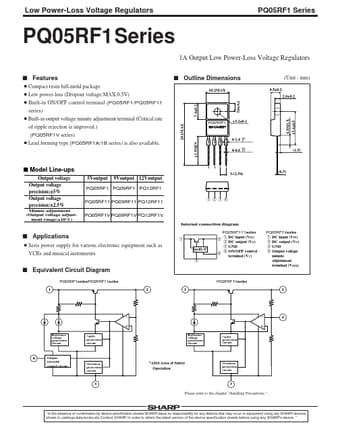

Preview of PQ05RF1 PDF
