PQ05RF13 Datasheet - Sharp

PQ05RF13, 1A Output Low Power-Loss Voltage Regulators Considering Power Line Voltage Drop

Low Power-Loss Voltage Regulators PQ05RF12/PQ05RF13 Series PQ05RF12/PQ05RF13 Series 1A Output Low Power-Loss Voltage Regulators Considering Power Li.

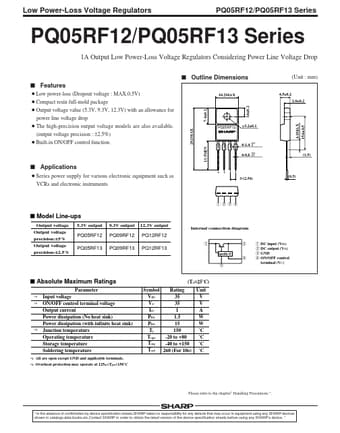

datasheet Preview Page 1 from Datasheet4u.com

PQ05RF13_SharpElectrionicComponents.pdf

PQ05RF13 Datasheet Preview — Preview of PQ05RF13 PDF

Datasheet Details

Part number:

PQ05RF13

Manufacturer:

Sharp

File Size:

40.15 KB

Description:

1A Output Low Power-Loss Voltage Regulators Considering Power Line Voltage Drop

Features

* ¡Low power-loss (Dropout voltage : MAX.0.5V) ¡Compact resin full-mold package ¡Output voltage value (5.3V, 9.3V, 12.3V) with an allowance for power line voltage drop ¡ The high-precision output voltage models are also available. (output voltage precision : ±2.5%) ¡Built-in ON/OFF control function. 1

Applications

* ¡Series power supply for various electronic equipment such as VCRs and electronic instruments 3-(2.54) (0.5) 1 q 2 q 3 q 4 q s Model Line-ups Output voltage Output voltage precision:±5% Output voltage precision:±2.5% 5.3V output PQ05RF12 PQ05RF13 9.3V output PQ09RF12 PQ09RF13 12.3V output PQ12RF12
