2SA1796 Switching Power Transistor

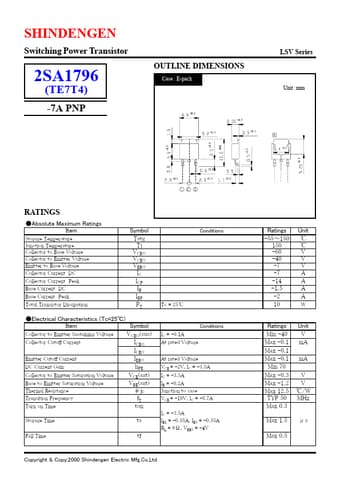

SHINDENGEN Switching Power Transistor LSV Series 2SA1796 (TE7T4) -7A PNP OUTLINE DIMENSIONS Case : E-pack Unit : mm RATINGS Absolute Maximum Ratings Item Storage Temperature Junction Temperature Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current DC Collector Current Peak Base Current DC Base Current Peak Total Transistor Dissipation Symbol Tstg Tj VCBO VCEO VEBO IC ICP IB IBP PT Conditions Tc = 25℃ Ratings -55～150 150 -60 -40 -7 -7 -14 -1.

2SA1796_ShindengenElectricMfg.Co.Ltd.pdf

Preview of 2SA1796 PDF
2SA1796 Datasheet Preview Page 2 2SA1796 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1796

Manufacturer:

Shindengen Electric Mfg.Co.Ltd

File Size:

407.46 KB

Description:

Switching power transistor.
