MTD1361 Unipolar motor driver

MTD1361 Description

SHINDENGEN Stepper Motor Driver ICs MTD Series MTD1361 Unipolar motor driver IC (DMOS output) .

MTD1361 Features

* n Unipolar drive system n DMOS output (low loss and Low generation of heat) n TTL and CMOS compatible gate n 4-phase input (simultaneous ON prevention function) n Constant current control n Integrated flywheel diodes and no external Zener diode needed n Low thermal resistance ZIP package (ZIP27) g

MTD1361 Applications

* Computers, OA and other office equipment, Communication terminal, Measurement machine tools, Audio-visual, Game and other amusements, Household electric appliances, Personal items, Industrial robot, etc. Special applications where the device may or not be suitable include the following. Transportati

📥 Download Datasheet

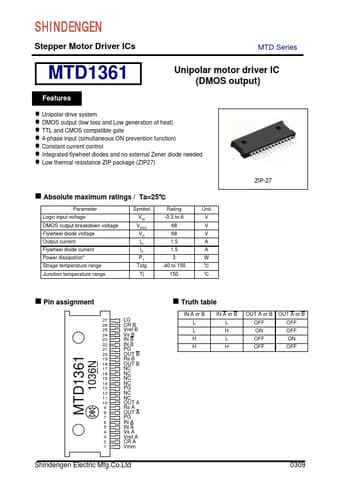

Preview of MTD1361 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MTD1361
Manufacturer
Shindengen Electric
File Size
129.82 KB
Datasheet
MTD1361-ShindengenElectric.pdf
Description
Unipolar motor driver
