MTD1312 Power MOSFET

MTD1312 Description

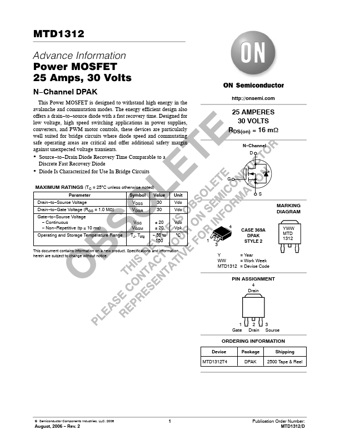

MTD1312 Advance Information Power MOSFET 25 Amps, 30 Volts N *Channel DPAK This Power MOSFET is designed to withstand high energy in the avala.

MTD1312 Features

* r>
* SOURCE VOLTAGE (VOLTS) Figure 7. Capacitance Variation 30 http://onsemi. com 5 MTD1312 VGS, GATE
* TO
* SOURCE VOLTAGE (VOLTS) t, TIME (ns) 12 QT 10 8.0 VGS 6.0 1000 VDD = 24 V ID = 20 A VGS = 10 V TJ = 25°C 100 td(off) tf tr 4.0 Q1 2.0 Q2 ID = 10 A TJ = 25°C 0 0 10 20

MTD1312 Applications

* in power supplies, converters, and PWM motor controls, these devices are particularly well suited for bridge circuits where diode speed and commutating safe operating areas are critical and offer additional safety margin against unexpected voltage transients.
