MTD1302 TMOS POWER FET

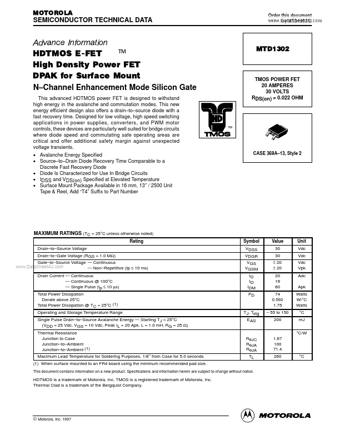

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MTD1302/D Advance Information HDTMOS E-FET ™ High Density Power FET DPAK for Surface Mount N Channel Enhancement Mode Silicon Gate This advanced HDTMOS power FET is designed to withstand high energy in the avalanche and commutation modes. This new energy efficient design also offers a drain to source diode with a fast recovery time. Designed for low voltage, high speed switching applications in power supplie.

MTD1302 Features

* >

* TO

* SOURCE VOLTAGE (VOLTS) Figure 7. Capacitance Variation 4 Motorola TMOS Power MOSFET Transistor Device Data MTD1302 VDS , DRAIN

* TO

* SOURCE VOLTAGE (VOLTS) VGS, GATE

* TO

* SOURCE VOLTAGE (VOLTS) 14 12 QT 10 8.0 6.0 Q1 4.0 2.0 0 Q3 VDS Q2 ID = 20 A TJ = 25°C

MTD1302 Datasheet (200.56 KB)

MTD1302 Datasheet Preview — Preview of MTD1302 PDF

Datasheet Details

Part number:

MTD1302

Manufacturer:

Motorola

File Size:

200.56 KB

Description:

Tmos power fet.
