SIT8002 Datasheet - Si Time

SIT8002 - Programmable Oscillator

Pin No.

Name 1 2 3 4 ST/OE GND OUT VDD Pin Description Standby/ Output Enable Connect to Ground 1 to 125 MHz Programmed Clock output Connect to 1.8V or 2.5V or 3.3V Pin1 Pin #1 Functionality OE H or Open; specified frequency output L: output is high impedance ST H or Open; specified frequency out

SIT8002 Features

* ±60 ps Peak-Peak Period Jitter

* Wide frequency range

* 1 MHz to 125 MHz

* Low frequency tolerance

* ±50 ppm or ±100 ppm

* Operating voltage

* 1.8V or 2.5 or 3.3 V

* 2.25V to 3.6V (contact factory)

* Operating temperature rang

SIT8002_SiTime.pdf

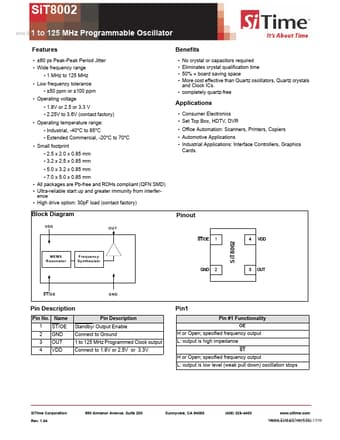

Preview of SIT8002 PDF
SIT8002 Datasheet Preview Page 2 SIT8002 Datasheet Preview Page 3

Datasheet Details

Part number:

SIT8002

Manufacturer:

Si Time

File Size:

265.50 KB

Description:

Programmable oscillator.
