SiT8209 - Ultra Performance Oscillator

Sitime

📥 Download Datasheet

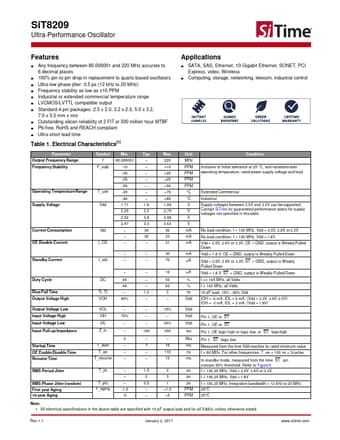

SiT8209 Datasheet Preview — Preview of SiT8209 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SiT8209
Manufacturer: Sitime
File Size: 633.75 KB
Datasheet: SiT8209-Sitime.pdf
Description: Ultra Performance Oscillator

SiT8209 Product details

Features

Any frequency between 80.000001 and 220 MHz accurate to 6 decimal places.
100% pin-to-pin drop-in replacement to quartz-based oscillators.
Ultra low phase jitter: 0.5 ps (12 kHz to 20 MHz).
Frequency stability as low as ±10 PPM.
Industrial or extended commercial temperature range.
LVCMOS/LVTTL compatible output.
Standby or output enable modes.
Standard 4-pin packages: 2.5 x 2.0, 3.2 x 2.5, 5.0 x 3.2, 7.0 x 5.0 mm2.
Outstanding silicon reliability of.
