SiT8003 - Low Power Programmable Oscillator

📥 Download Datasheet

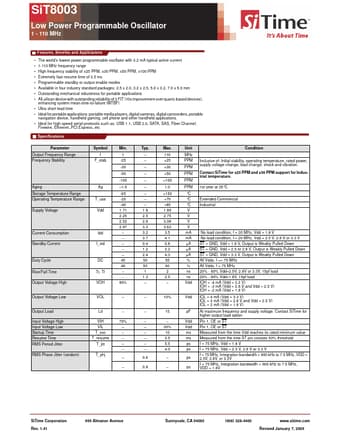

Preview of SiT8003 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SiT8003
Manufacturer
Si Time
File Size
91.34 KB
Datasheet
SiT8003-SiTime.pdf
Description
Low Power Programmable Oscillator

SiT8003 Product details

Description

and Land Pattern Dimensions (Unit: mm)[1] 2.5 x 2.0 x 0.75 mm 2.5 ± 0.10 1.00 2.0 ± 0.10 1.1 YXXXX 0.75 0.5 Pin #1 Functionality OE H or Open[3]; specified frequency output L: output is high impedance ST H or Open; specified frequency output L: output is low level (weak pull down) Pin Map Pin Connection 1 OE/ST 2 GND 3 CLK 4 VDD 0.75 ± 0.05 Dimensions (Unit: mm)[1] 3.2 x 2.5 x 0.75 mm 3.2 ± 0.15 #4 #3 2.1 #3 #4 2.5 ± 0.15 0.9 YXXXX #1 #2 #2 0.9 #1 0.7 0.75 ± 0.05 Dimensions (Un
