SiT8004 Datasheet - Si Time

Low Power Oscillator

SiT8004 Features

* Benefits and Applications

* Lowest power, high frequency oscillator with 6.3 mA typical active current

* 125MHz to 150MHz frequency range

* LVCMOS/LVTTL compatible output

* Excellent frequency stability over temperature, ±20 PPM

* Ultra low standby current, 1.2 µA

* Standby

SiT8004 General Description

Tables Pin #1 Functionality OE H or Open: specified frequency output L: output is high impedance ST H or Open: specified frequency output L: output is low level (weak pull down). Oscillation stops Pin Map Pin Connection 1 OE/ST 2 GND 3 CLK 4 VDD Absolute Maximum Table Attempted operation outside t.

SiT8004 Datasheet (114.91 KB)

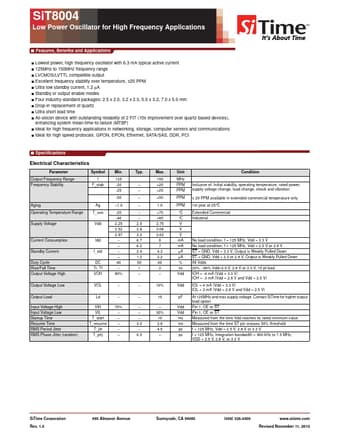

SiT8004 Datasheet Preview — Preview of SiT8004 PDF

Datasheet Details

Part number:

SiT8004

Manufacturer:

Si Time

File Size:

114.91 KB

Description:

Low power oscillator.
